Miejsce pochodzenia:
Szanghaj, Chiny
Nazwa handlowa:
carterberg
Orzecznictwo:
IATF16949
Numer modelu:
CB-5
Thread to Connect 5,000 psi Dry Break and High Impulse technology steel quick coupling

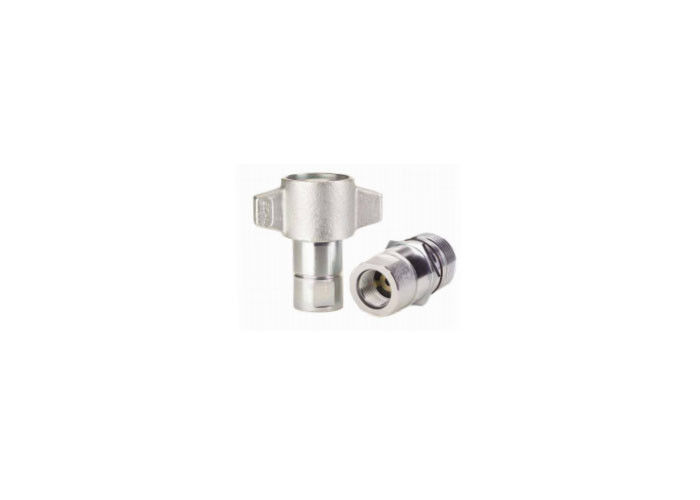

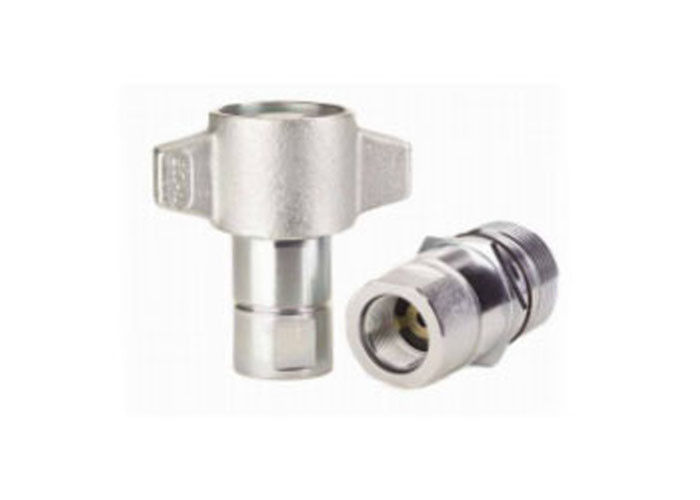

CB-5-G Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi. The Series is available in either wing nut or hex nut configurations for ease of assembly and disassembly. (For higher pressure applications and additional size Applications • Hydraulic and fluid transfer • Mining equipment
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1" | CB-S8S-5FN-G | 1-11 1/2 | 4.98 | 4.50 | - |
| 1" | CB-S8S-5FN-G | 1-11 1/2 | 4.98 | 2.81 | 1.62 |
| 1" | CB-P8S-5FN-G | 1-11 1/2 | 4.40 | 2.11 | 1.75 |
