Numer modelu:
CB-Q/ZB275

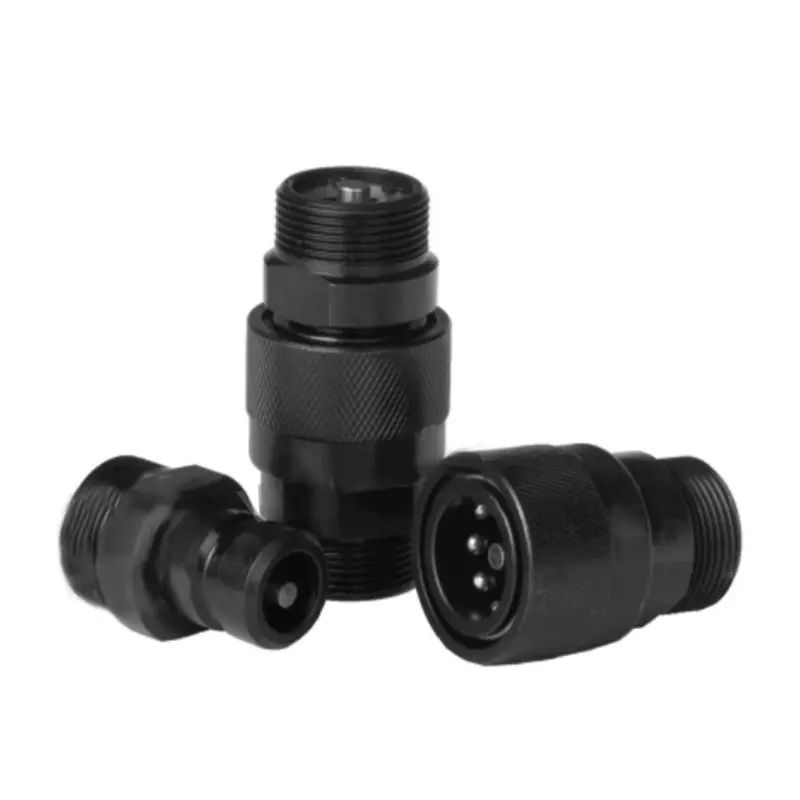

CB-Q/ZB275 Thread-Locked Hydraulic Quick Coupling – Manual Push-Pull for Low-Pressure Applications
The CB-Q/ZB275 manual push-pull thread-locked hydraulic quick coupling ensures swift and leak-free connections for low-pressure hydraulic systems. Designed for durability, it features steel/stainless steel construction and automatic valve closure to prevent spills. Ideal for agricultural, construction, and mobile equipment, this coupling supports moderate pressures and frequent use. Its ergonomic sleeve locking mechanism simplifies operation, enhancing efficiency in fluid transfer applications. Trusted for reliability, it meets industrial standards for safety and performance.
| Body Size(in) | M16*1.5 | M22*1.5 | M27*1.5 | M30*1.5 | M36*1.5 | M42*1.5 | M52*2 | M60*2 | M68*2 |
| Code | DN6 | DN8 | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Steel | 34.5 | 34.5 | 34.5 | 27.6 | 27.6 | 27.6 | 20.7 | 13.8 | 13.8 |
| Stainess Steel | 13.8 | 13.8 | 10.4 | 10.4 | 7 | 7 | 7 | 7 | 7 |
| Temperature Range(NBR) | -20℃ ~ +100℃ | ||||||||
| PART No . | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
| CB-Q/ZB275-DN6T-SP | 67 | 44 | 40 | 18 | 28 | 13 | 19 | 19 | M16*1.5 M14*1.5 |
| CB-Q/ZB275-DN8T-SP | 69 | 46 | 41 | 19 | 30 | 16 | 22 | 22 | M22*1.5 M18*1.5 |
| CB-Q/ZB275-DN10T-SP | 78 | 52 | 46 | 22 | 35 | 19 | 27 | 27 | M27*1.5 |
| CB-Q/ZB275-DN15T-SP | 87 | 56 | 52.5 | 24 | 39.5 | 22 | 30 | 30 | M30*1.5 |
| CB-Q/ZB275-DN20T-SP | 97 | 65 | 58.5 | 29 | 48 | 28 | 36 | 36 | M36*2 |
| CB-Q/ZB275-DN25T-SP | 109 | 73 | 65.5 | 31 | 55 | 35 | 46 | 46 | M42*2 |
| CB-Q/ZB275-DN32T-SP | 129 | 84 | 79 | 36 | 64.5 | 32 | 55 | 55 | M52*2 |
| CB-Q/ZB275-DN40T-SP | 145 | 93 | 89.5 | 39.5 | 78 | 51 | 65 | 65 | M60*2 |
| CB-Q/ZB275-DN50T-SP | 156 | 99 | 96.5 | 41 | 82 | 55 | 70 | 70 | M68*2 |
