Miejsce pochodzenia:
CHINY
Nazwa handlowa:
carterberg
Orzecznictwo:
IATF16949
Numer modelu:
CB-RK

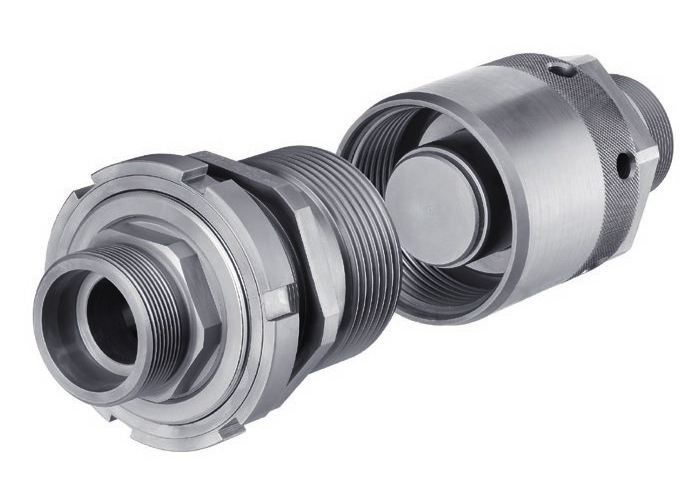

RK Series Flat Face Thread-to-Connect Hydraulic Couplings for High-Pressure Applications
The RK Series Flat Face Thread-to-Connect Hydraulic Couplings are built for demanding hydraulic systems operating up to 420 bar. Their flat face valve system ensures minimal fluid loss and easy cleaning, while the thread locking design provides a secure, vibration-resistant connection even under residual pressure—both male and female sides can be connected under pressure. Manufactured from durable carbon steel with a Zn-Ni plated finish, these couplings deliver excellent corrosion resistance and long-lasting reliability. Available with BSP, NPT, and SAE threads, the RK Series comes with NBR seals as standard and optional FKM or EPDM for wider compatibility. With an operating temperature range of -25°C to +100°C, they are ideal for construction machinery, industrial equipment, and agricultural hydraulics requiring safe and clean connections.
| Nominal size | Working pressure | Rated flow(ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
| RK | ISO | Mpa | l/min | l/min | Male(Mpa) | Female(Mpa) | Coupled(Mpa) | cc |
| 08 | 10 | 42 | 23 | 46 | 160 | 160 | 160 | 0.02 |
| 12 | 12.5 | 42 | 45 | 90 | 126 | 126 | 126 | 0.02 |
| 16 |
19 |
42 | 106 | 160 | 126 | 126 | 126 | 0.06 |
| 20 | 25 | 42 | 189 | 280 | 120 | 120 | 130 | 0.1 |
| 25 | 31.5 | 42 | 288 | 575 | 110 | 110 | 130 | 1 |
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
